Electronics

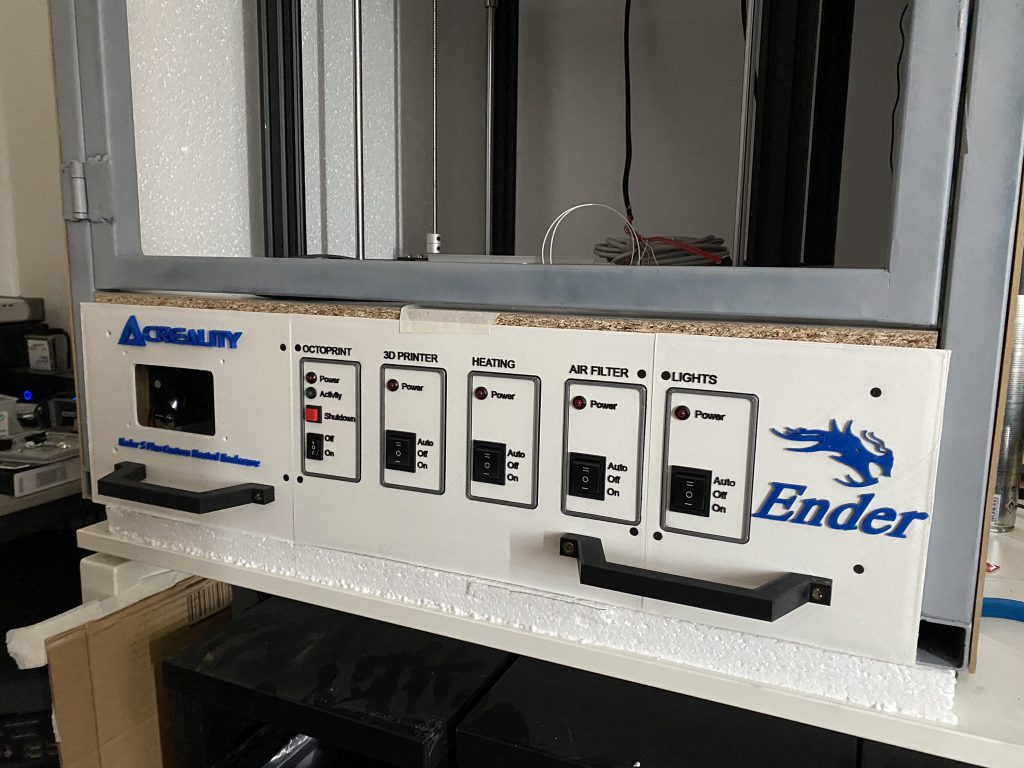

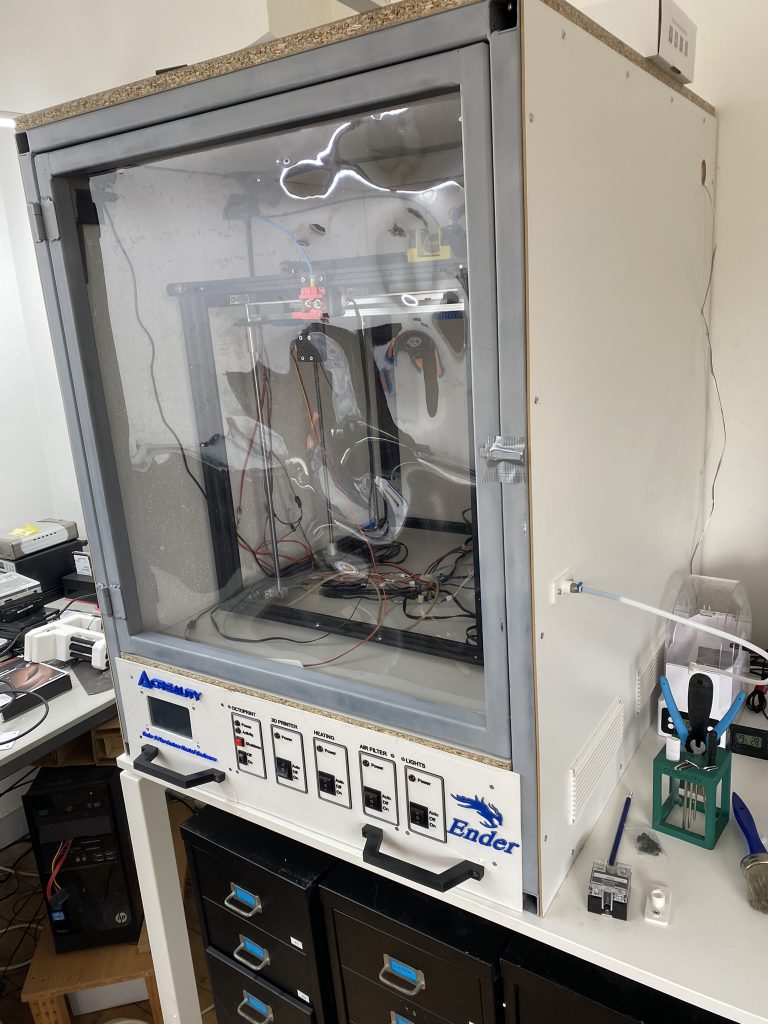

Using FreeCad, designed the front for electronics. Printed in 3 parts, because of size.

Designed in FreeCad. Printed in 3 parts, because of size…

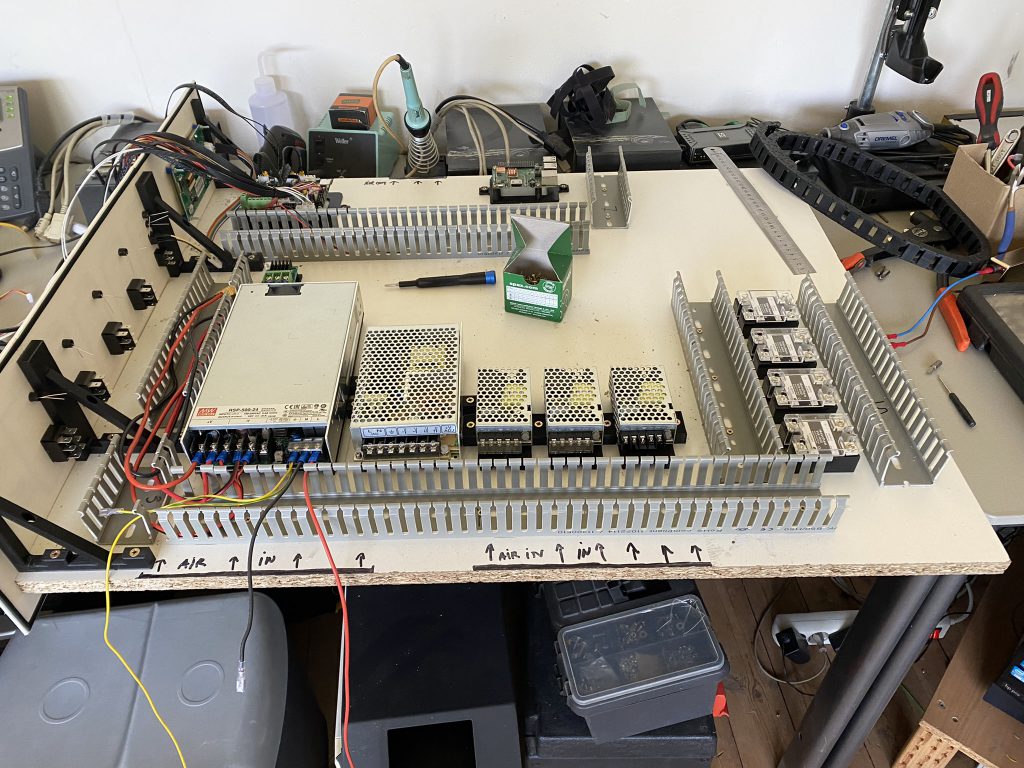

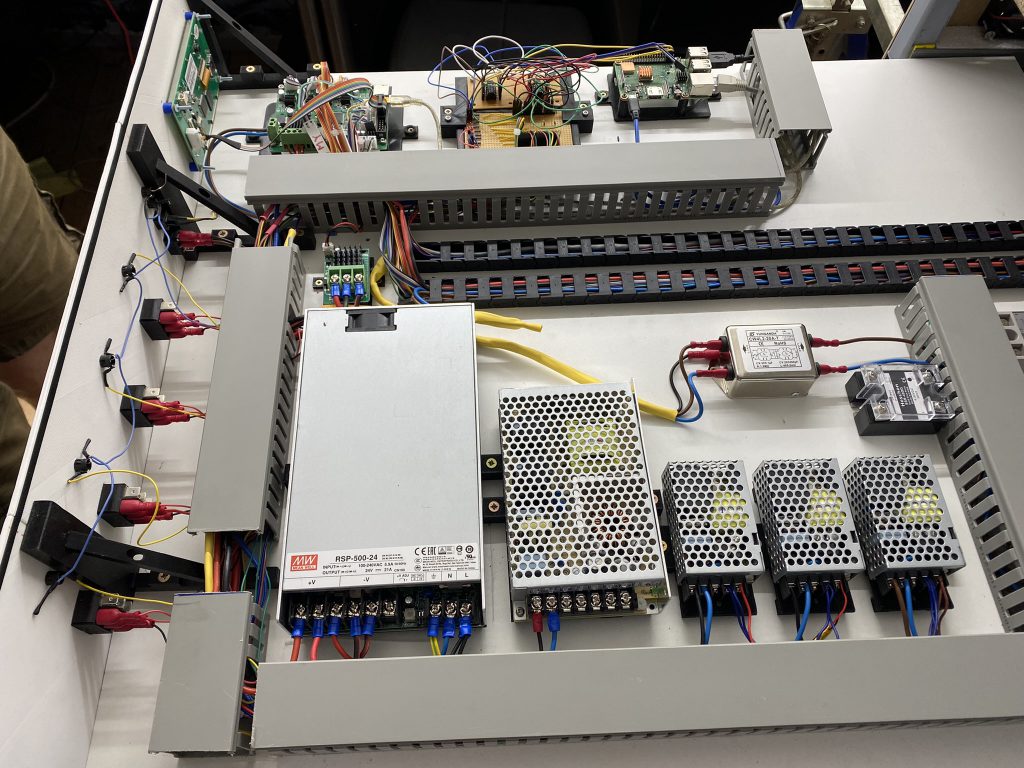

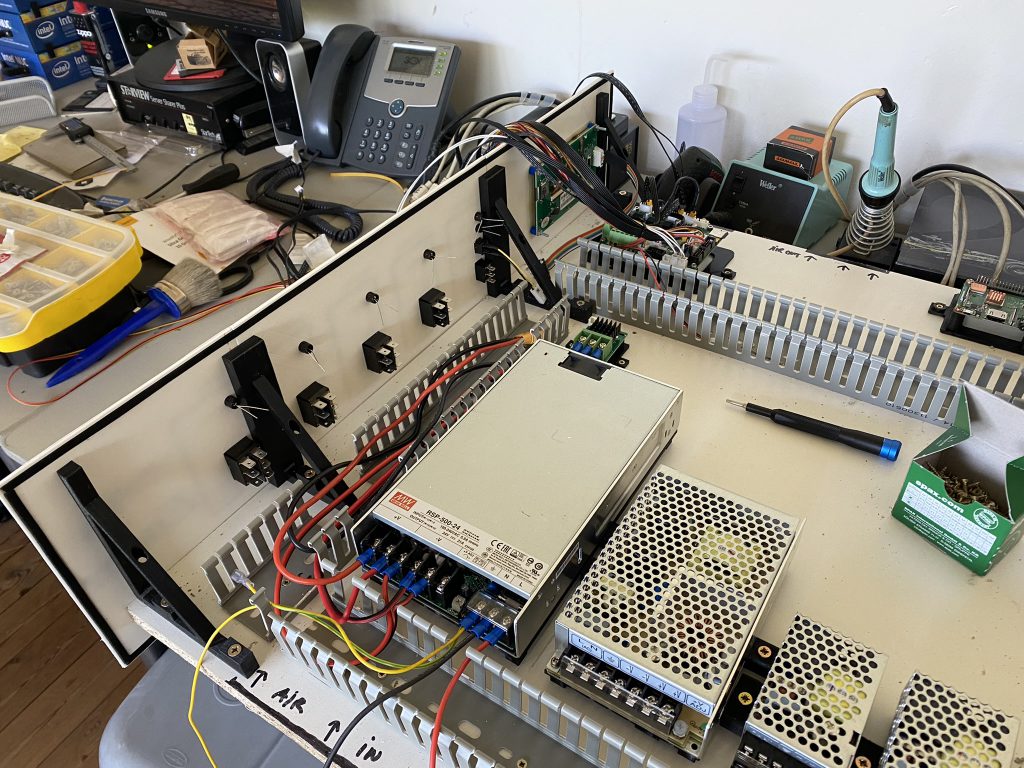

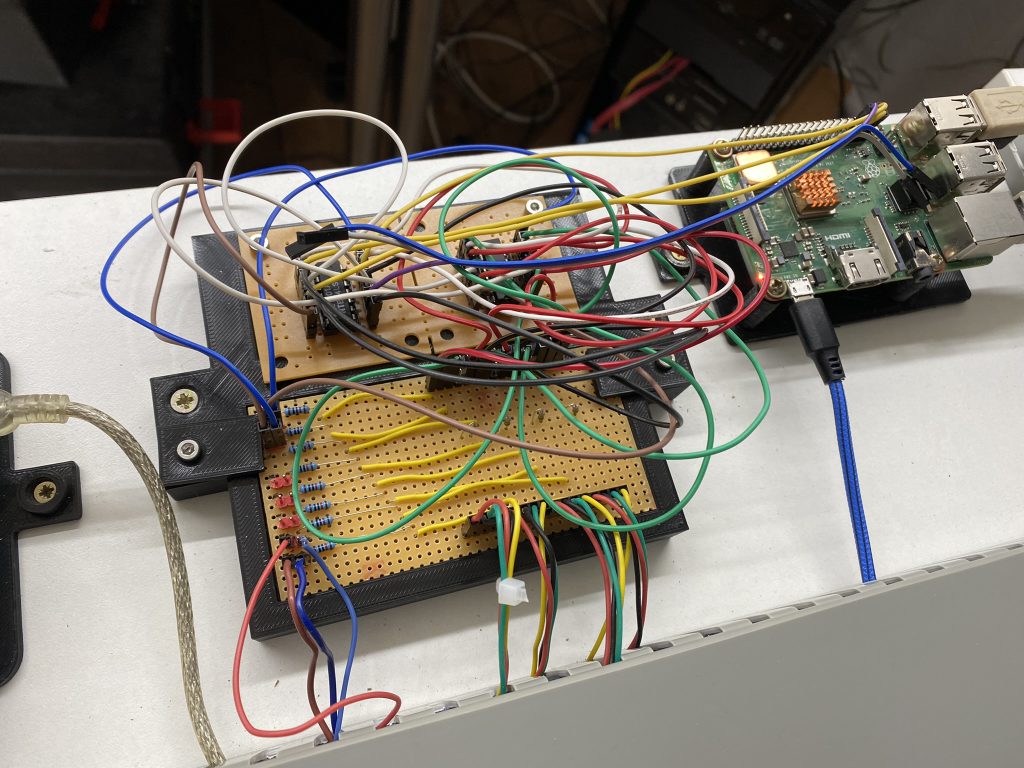

Plate with electronics

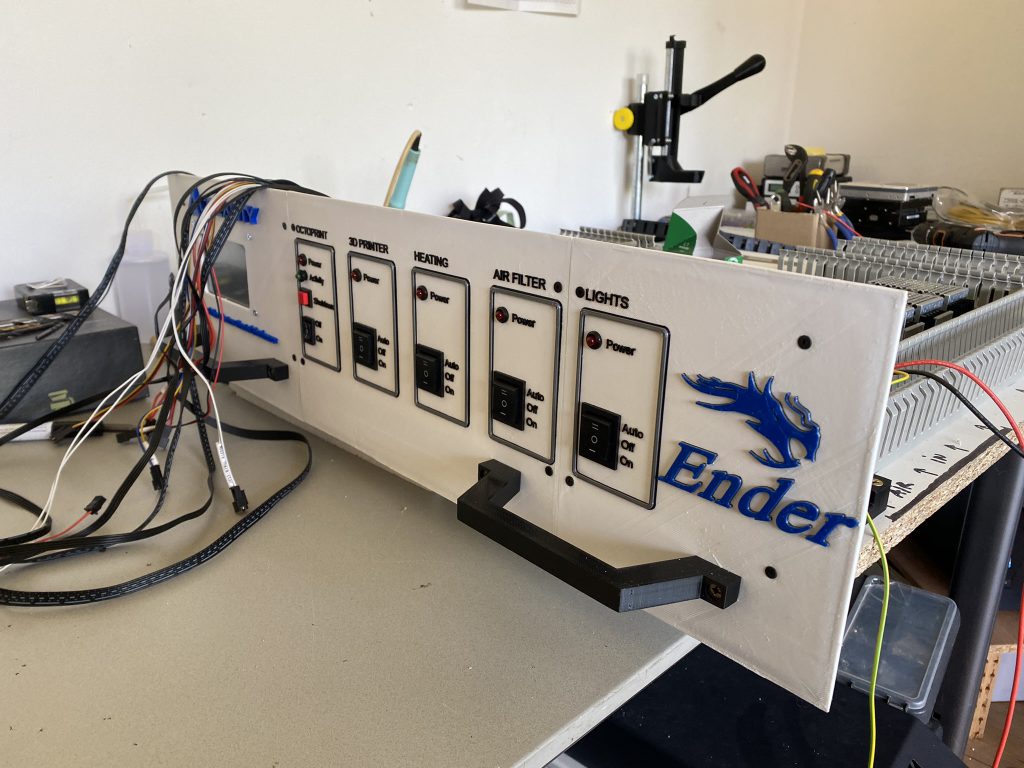

Testprint for on/off/auto (RPI) switch. Octoprint (RPI) had an on/off switch, but the printer, lights, heater and fans can be controlled by the front switch OR Octoprint (with enclosure plugin). So switches have three conditions: On, Of or Auto. In AUTO mode, the EnclosurePlugin in Octoprint controls the device.

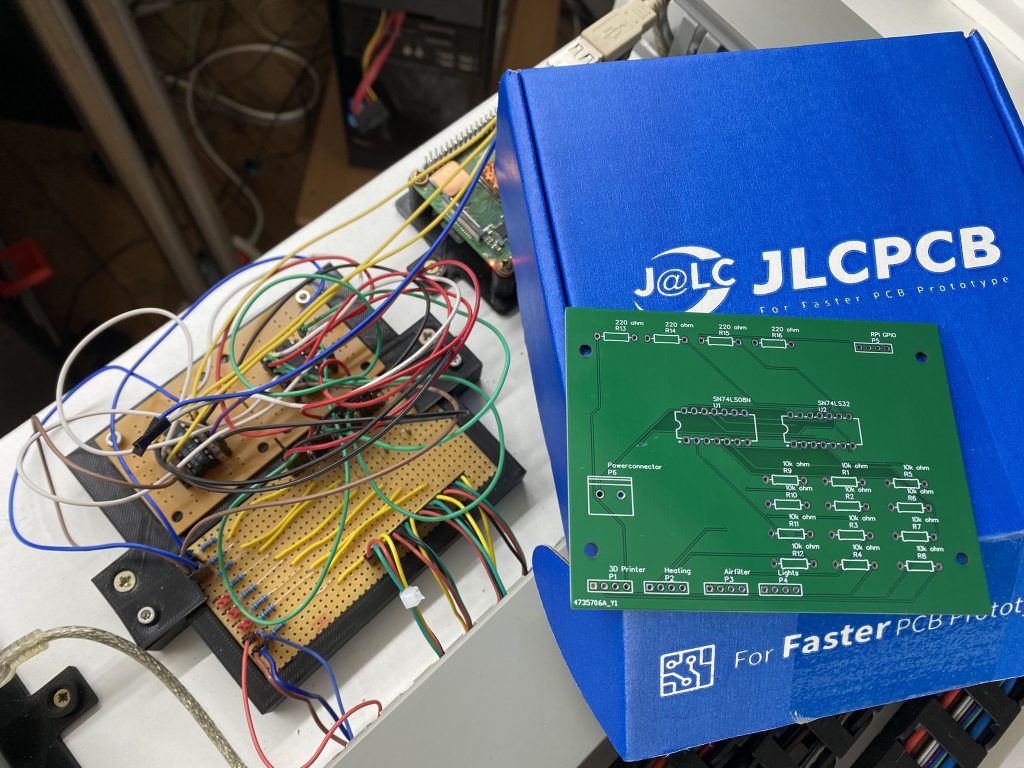

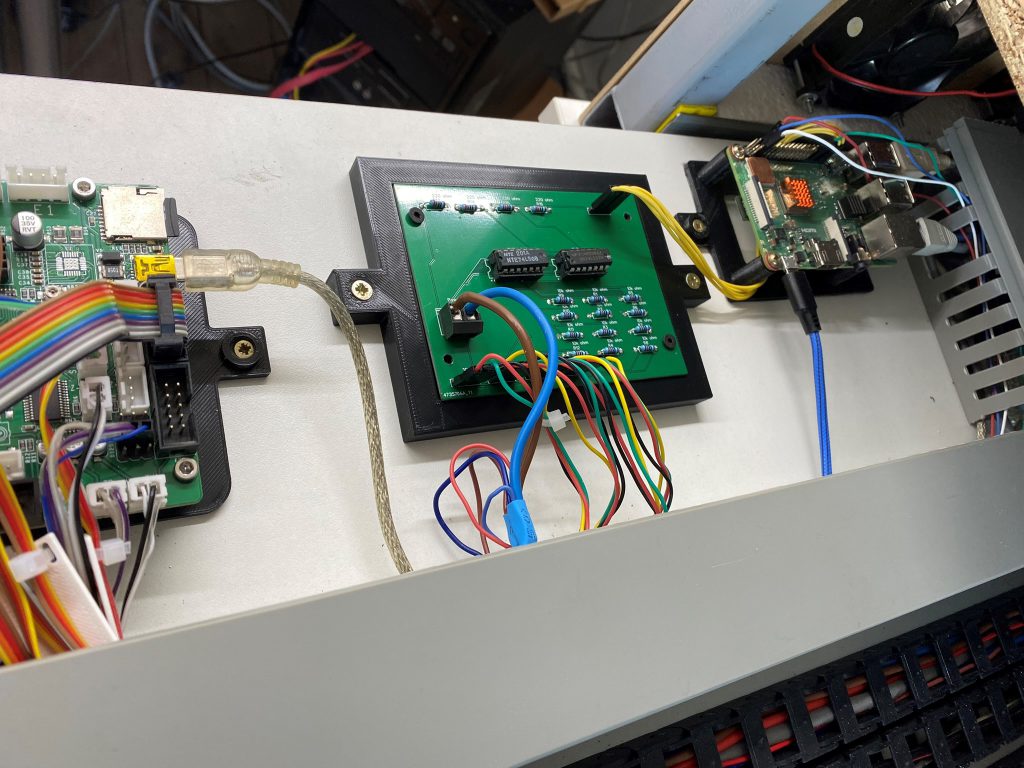

Created a PCB and ordered at JLCPCB

UPDATE March 2023: replaced the three 20mm cablechains with one 70mm cablechain

Updated Fusion 360 drawing to create a 70mm wide cablechain. This chain is made in two parts and has a mounting plate. See downloadpage for files.
